GEAR SHAPER CUTTERS

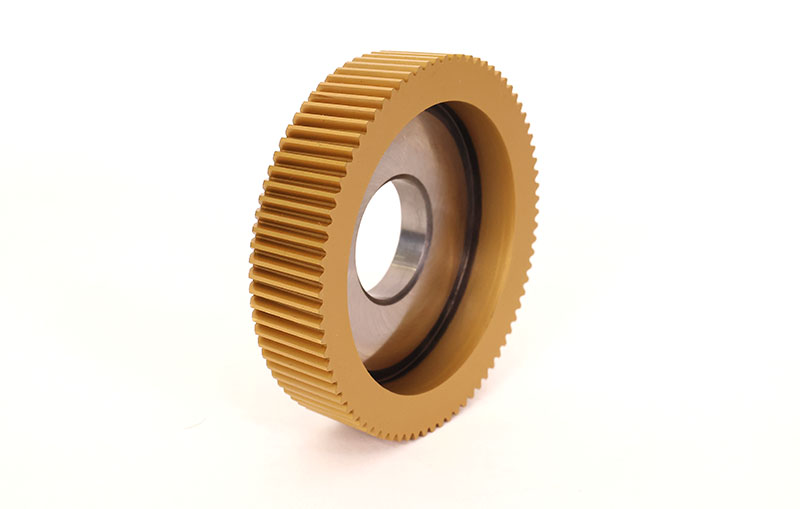

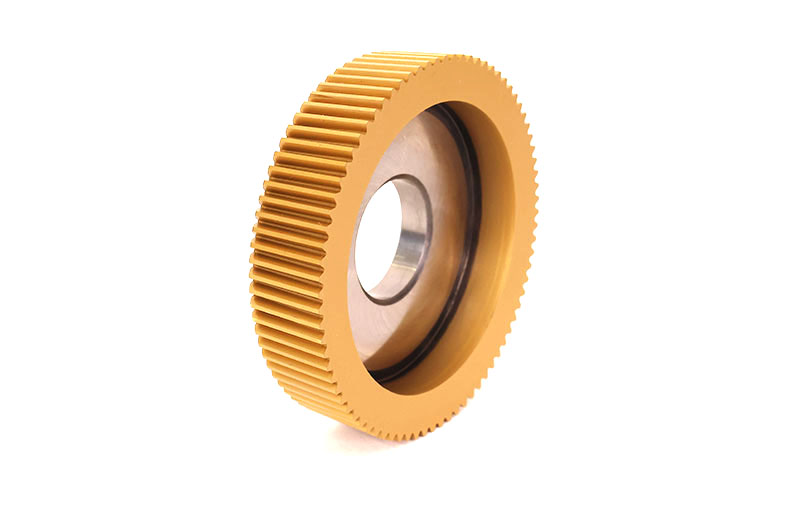

CTI designs and manufactures spur and helical gear shaper cutters to produce all types of internal and external Gears, Splines, Sprockets and Timing Pulleys. Custom made shaping cutters to cut pre shaved and pre ground gears with profile modifications like protuberance and semi topping can be supplied.
Shaper cutters can be supplied in following types:
Hub Type
Disc Type
Shank Type
Deep Counter Bore
The above cutters are available in the following range of dimensions and specifications:
Module – 0.5 to 20 Module
Accuracy: AA, A and B as per DIN 1829
Coatings: TiN,TiCN,TiAlN to enhance tool life upto 10 times.
DP- 50 to 1.25 DP
Max diameter -300mm ( 12” )
Material: High Speed Steel grade M35, M4, ASP 2030 and ASP 2052
Frequently Asked Questions
How many types of gear shaper cutters are there?
Capital Tool Industries (CTI) manufactures a wide range of gear shaper cutters, including Hub Type, Disc Type, Shank Type, and Deep Counter Bore cutters for both internal and external gear applications.
What gears can be produced using gear shaper cutters?
Gear shaper cutters are designed to produce spur gears, helical gears, internal gears, external gears, splines, sprockets, timing pulleys, and other specialized gear profiles.
What makes CTI's gear tooling solutions unique?
By combining the engineering expertise and manufacturing strengths of CTI, Mico, and Acedes, customers benefit from reliable, high-precision gear-cutting solutions backed by decades of industry experience and global technical support.
What material are gear shaper cutters made from?
Gear shaper cutters are made from High-Speed Steel (HSS), Powder Metallurgy HSS, and Carbide for high wear resistance and precision. Premium HSS grades like M35, M4, ASP 2030, and ASP 2052 are used for better performance and longer tool life.
Can gear shaper cutters be customized?
Yes, CTI manufacture custom gear shaper cutters for pre-shaved and pre-ground gears, including profile modifications such as protuberance and semi-topping designs for improved gear finishing and performance.
What accuracy standards do gear shaper cutters meet?
Gear shaper cutters are available in AA, A, and B accuracy grades in accordance with DIN 1829 standards, ensuring high-precision gear manufacturing.
What size range is available for gear shaper cutters?
Gear shaper cutters are available in modules ranging from 0.5 to 20 Module and diametral pitches from 50 DP to 1.25 DP, with cutter diameters up to 300 mm (12″).
What is CTI’s global strategy for sales?
CTI made two acquisitions in 2 years as a part of our global growth strategy, CTI acquired Mico Tools (Mishalle NV), Belgium, in 2023 and Acedes Gear Tools, UK, in 2025. These acquisitions strengthened CTI’s expertise in advanced gear-shaping and power-skiving technologies while enhancing customer support across Europe.
Why choose Capital Tool Industries (CTI) for gear shaper cutters?
Since 1966, Capital Tool Industries has been a trusted manufacturer of precision gear-cutting tools for customers worldwide. It specializes in gear hobs, gear shaper cutters, power skiving cutters, and finishing tools engineered for accuracy, durability, and productivity.
